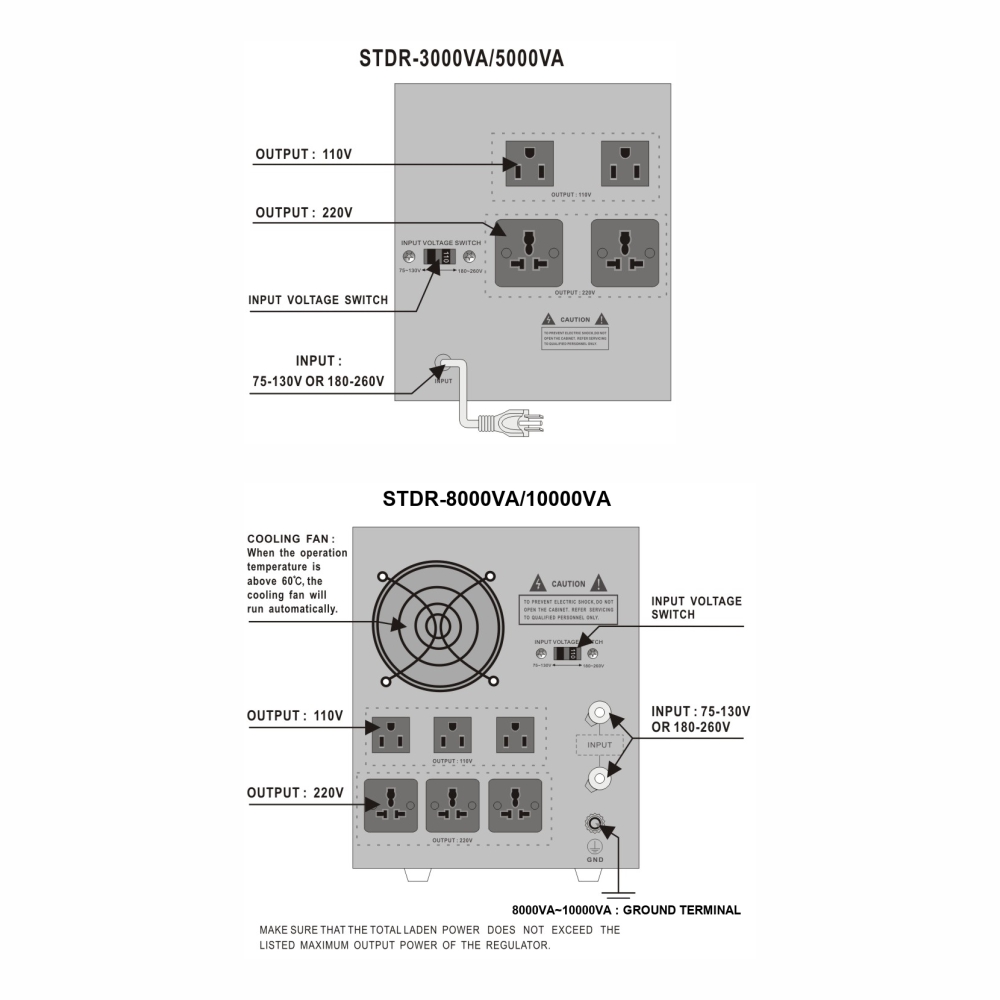

STDR-3000VA – 5000VA – 8000VA – 10000VA

Features:

• Features: Microprocessor (CPU) control, relay-type voltage regulation
• Digital display meters: accurate, stable, easy to read at a glance
• LED indicators: Working / Delaying / Unusual; Selectable delay time 6s / 120s
• High & low voltage cut-off protection with auto resume
• Short circuit & overload protection
• Input & output circuit breakers, dual switch: double protection
• 110V / 220V input selector & universal output sockets

Specificatons:

Technology: CPU based Digital Circuit
Input Voltage Range: 180V AC ~ 260V AC or 75V AC ~ 130V AC
Input Frequency: 50Hz
Output Voltage: 220V AC+/-5% or 110V AC +/-5%
Output Frequency: 50Hz
Maximum Current: 3000VA: 13.6A / 5000VA: 22.7A / 8000A: 36.3A / 10000VA: 45.5A
Phase: Digital meters (input / output) + LED indicators
High / Low Voltage Protection: Yes (cut-off & auto resume), high-protect 255V
Circuit Protection (Input): 3000VA: 16A / 5000VA: 25A / 8000VA: 40A / 10000VA: 60A
Circuit Protection (Output): 3000VA: – / 5000VA: – / 8000VA: 25A / 10000VA: 32A
Delay Time: 6 / 120 Seconds (selectable)
Transfer Time: < 0.5 Second
Waveform: Sine wave, no distortion
Safety Standards: CE, ISO9001
